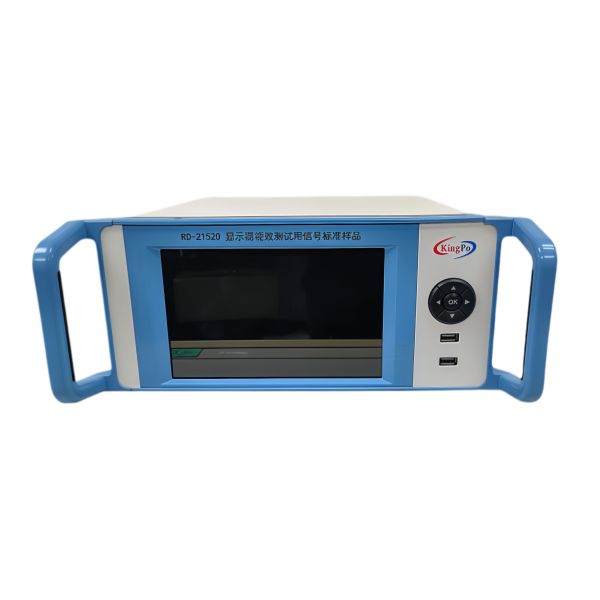

8K Signal Generator for Display Energy Efficiency Testing

Name: 8K Signal Generator for Display Energy Efficiency Testing
Brand: KINGPO
Price: 7000 USD

Quality 8K Signal Generator for Display Energy Efficiency Testing for sale

Accuracy : ±0.5%

Operating Voltage : AC220V ± 10% 50HZ

Brand Name : KINGPO

Model Number : RDL21520

Certification : iso9001

Place of Origin : CHINA

MOQ : 1

Price : 7000

Payment Terms : T/T

Contact Now

8K Signal Generator

Attribute	Value
Accuracy	±0.5%
Operating Voltage	AC220V ± 10% 50HZ

Standard Signal Source for Display Energy Efficiency Test

8K Signal Generator for Display Energy Efficiency Testing

Product Overview

The 8K signal generator is a specialized video signal source designed specifically for display energy efficiency testing. It meets the testing requirements outlined in GB 21520-2023, which specifies the limits and levels of display energy efficiency. This source covers all test signals specified in the standard and features multiple interfaces, high resolution, and a high refresh rate. It can provide standardized video test signals for the energy efficiency testing of various displays.

Product Features

Multi-interfaces: 5 video output interfaces including HDMI, DP, DVI, USB-C and VGA, covering most display interfaces
High resolution: Up to 7680x4320 resolution, meeting 8K display test requirements
High refresh rate: Up to 160Hz refresh rate for high performance display testing
Rich test signals: Built-in standard video test signals of 8bit, 10bit, RGB, YUV and other pixel formats, fully covering GB 21520-2023 standard, with support for user-added video test signals
User-friendly interface: 8-inch LCD capacitive touch screen provides intuitive operation

Technical Specifications

Applied Code	GB 21520-2023 Energy Efficiency Limiting Values and Energy Efficiency Grades for Displays
Video Interface	HDMI, DP, DVI, USB-C, VGA
Pixel Format	8bit RGB444 Full Range, 8bit RGB444 Narrow Range, 8bit YUV422 Narrow Range, 10bit RGB444 Full Range, 10bit RGB444 Narrow Range, 10bit YUV422 Narrow Range
Color Gamut Space	ITU-R BT.601, ITU-R BT.709, ITU-R BT.2020
Brightness Range	SDR, HDR
Test Signal	Dynamic video signals specified in IEC 62087-2 8 level gray scale test signal White window test signal Full field signals (white, black, red, blue, green) 10% white window signal
HDMI	HDMI2.1 backward compatible, supports FRL/TMDS mode, up to 8K@60Hz, 4K@160Hz
DP	DP-1.4 standard, forward compatible, up to 8K@30Hz, 4K@60HZ, 2K@144Hz
USB-C	Supports up to 8K@30Hz, 4K@60Hz, 2K@144Hz
DVI	Supports up to 2560x1600 30Hz, 1920x1200 60Hz
VGA	Supports up to 2560x1600 25Hz, 1920x1200 60Hz

Documentation

8K Signal Generator Software
Standard Signal Source for Display Energy Efficiency Test
8K Signal Generator Technical Documentation
